船用青銅吸入通海閥性能規范Technical Data

公稱壓力Nominal Pressure(MPa) 公稱通徑Nominal Diameter(mm) 適用介質Applicable Medium 1.6 80 - 400 海水Sea water

船用青銅吸入通海閥主要零部件材質Materials of Main Parts

零件名稱Parts Name 材料Material 　 名稱Name 牌號Marks 閥體、閥蓋Body/Cover 鑄錫青銅Cast Tin Bronze ZCuSn102n2 閥盤Disc 鑄錫青銅Cast Tin Bronze ZCuSn102n2 閥桿Stem 鋁青銅Aluminum Bronze CuA19Mn2

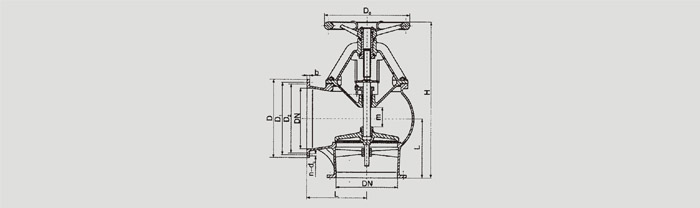

船用青銅吸入通海閥B型基本尺寸Dimensions

公稱通徑 DN (mm) 結構尺寸 Structure Dimension 法蘭Flange 螺栓Bont 手輪 Hand wheel Do 升程 Lift Range m 參考重量 Weight (kg) 　 L H≈ D Di D2 b Do n個 Th 　 　 　 80 125 360 170 138 1 18 14 15 8 M14 160 24 19.0 100 135 415 190 158 138 14 15 8 M14 180 30 23.6 125 160 470 215 183 164 14 15 10 M14 200 40 31.2 150 175 506 240 208 190 14 15 12 M14 225 48 49.8 200 220 595 295 264 247 15 15 12 M14 280 60 70.0 250 260 698 365 327 306 16 17 14 M16 360 70 111.0 300 300 780 430 386 360 19 22 14 M20 400 78 170.3 350 320 910 480 436 410 20 22 16 M20 450 100 229.0 400 380 960 530 486 460 21 22 16 M20 500 110 299.0
